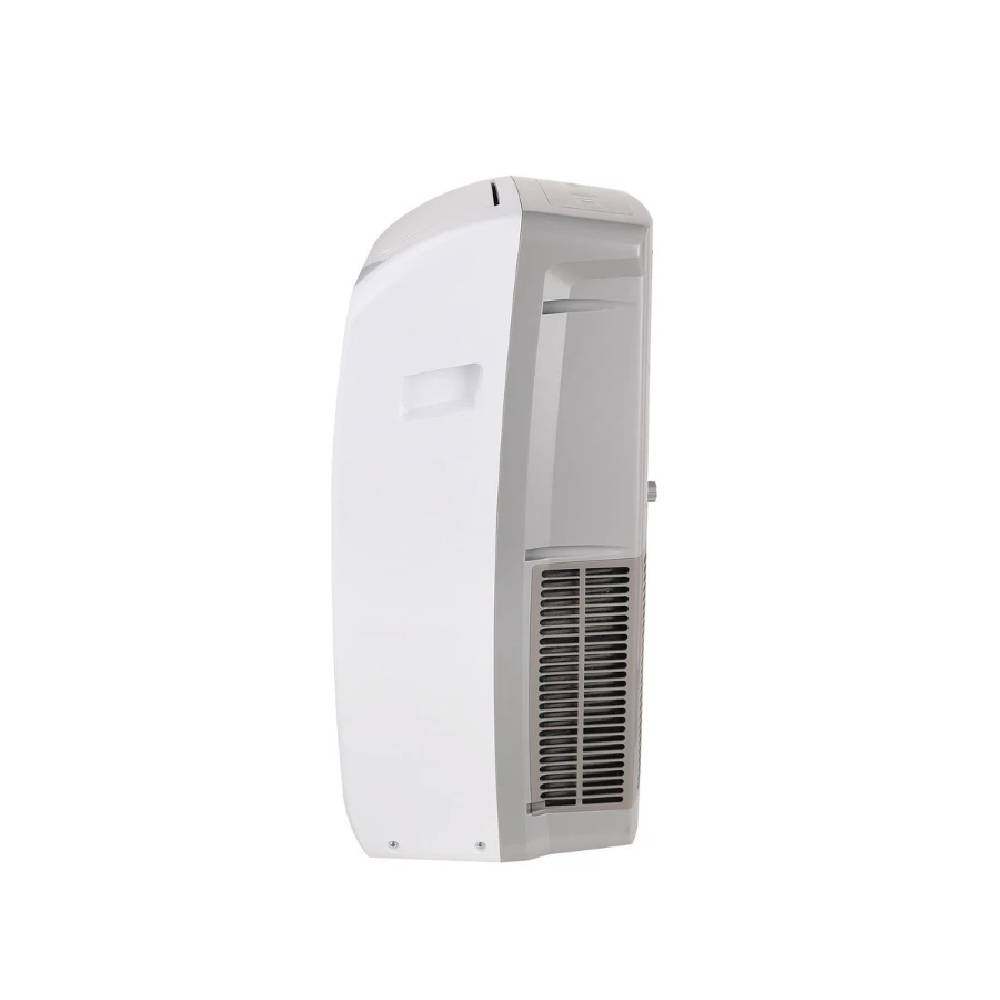

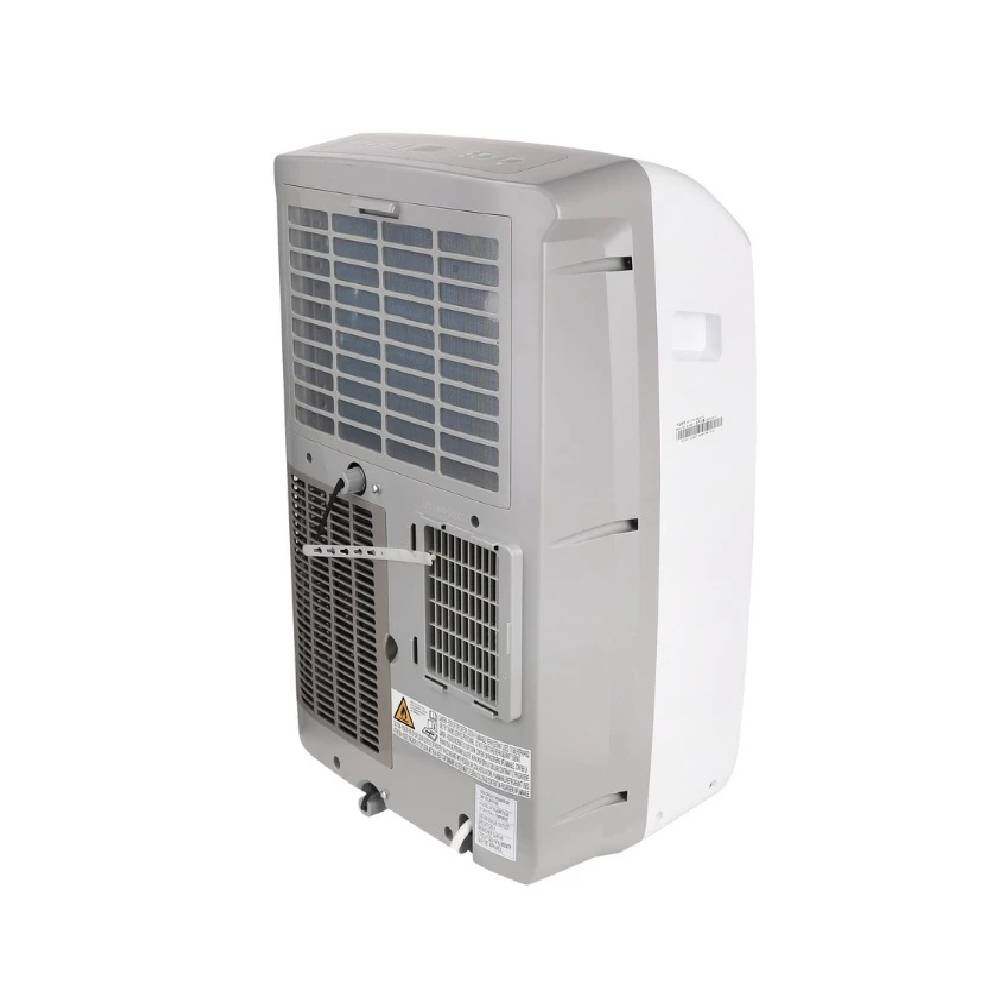

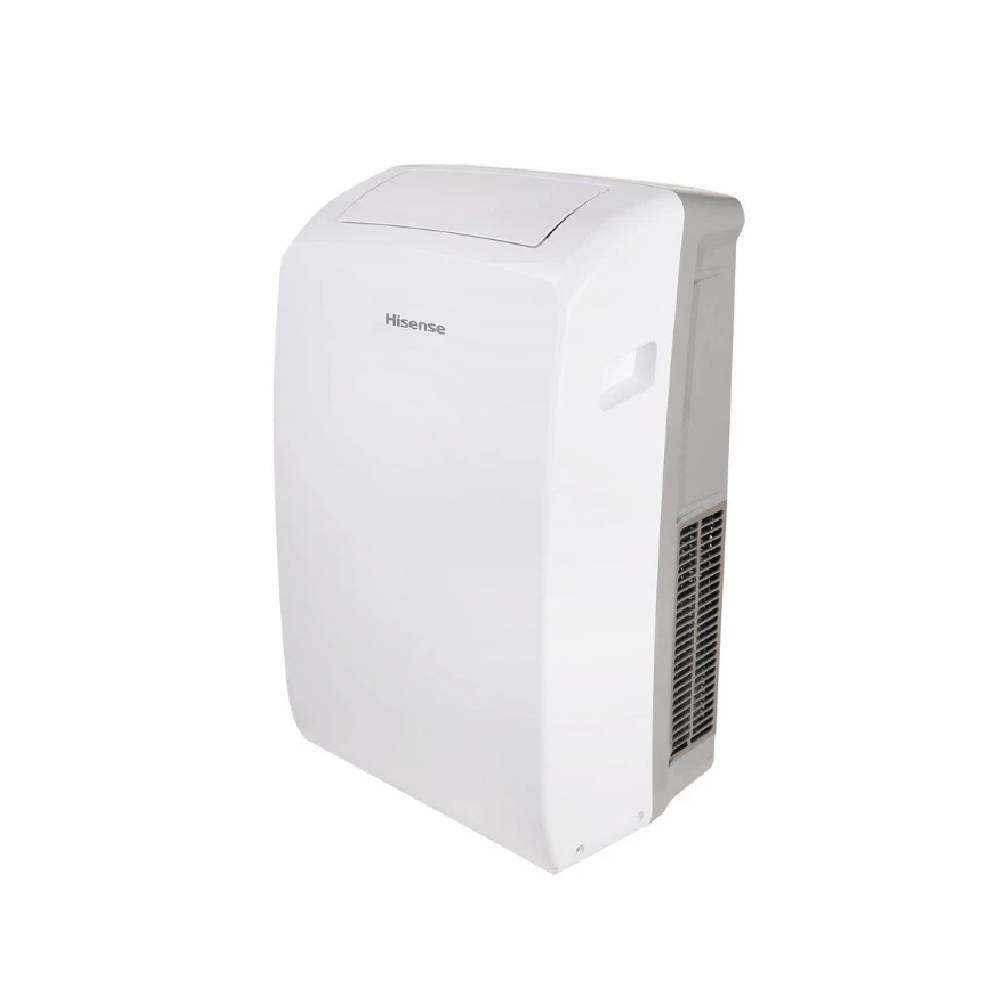

1.5HP R32 Portable Air Conditioner

Specification

Ratings

Model No.: AP12NXG
Type: Non-Inverter
HP: 1.5HP
Cooling Capacity (Btu/h): 12,000
Air Circulation (m³/h): 360
EER for Cooling (W/W): 3.31
Refrigerant Type: R32
Refrigerant Charge Volume (g): 300

Noise Level (Sound Pressure)

• Indoor Unit:
  • High: 52 dB(A)
  • Low: 50 dB(A)
• Outdoor Unit: 59 dB(A)

Power Supply

Model No.: AP12NXG

• Voltage / Frequency: 220–240V~, 50Hz
• Phase: 1P
• Rated Current (Cooling): 5.0 A
• LRA: 19.6 A

System

Model No.: AP12NXG

• Compressor Type: –

Features (General)

Model No.: AP12NXG

• Unit Control Type: Electronic
• Fan Control: Button
• Thermostat Control: Button
• Display: LED
• Sleep Mode: Yes (on the controller)
• Dry Mode (Auto Speed Only): Yes
• Water Full Indicator: Yes
• Auto Cool (Auto Fan in Cooling): Yes (on the controller)
• Smart Mode (Remote Access): Yes (on the controller)
• Rapid Cool (Jet) Mode (Lowest Temp. & High Speed – remote only): Yes (on the controller)
• Fan Only: Yes – 3 Speed
• Cooling Speed Selections: 3
• Timer (24Hr On/Off): Yes (1-minute increments up to 24 Hr)
• Clock: Yes (on the controller)
• Air Swing (Motorized – Upward & Downward): Yes
• Auto-Restart: Yes
• Fahrenheit to Celsius Function: Yes
• Vent System: Single Duct

Other Information

Model No.: AP12NXG

• Net Dimensions (Indoor Unit – WxHxD mm): 433 × 708 × 320
• Gross Weight (Indoor Unit): 30.0 kg
• Net Weight (Indoor Unit): 25.4 kg
