1.0HP WindFree™ Deluxe Air Conditioner with Inverter AR10BYFA

Reduces energy use by 77%* to save money

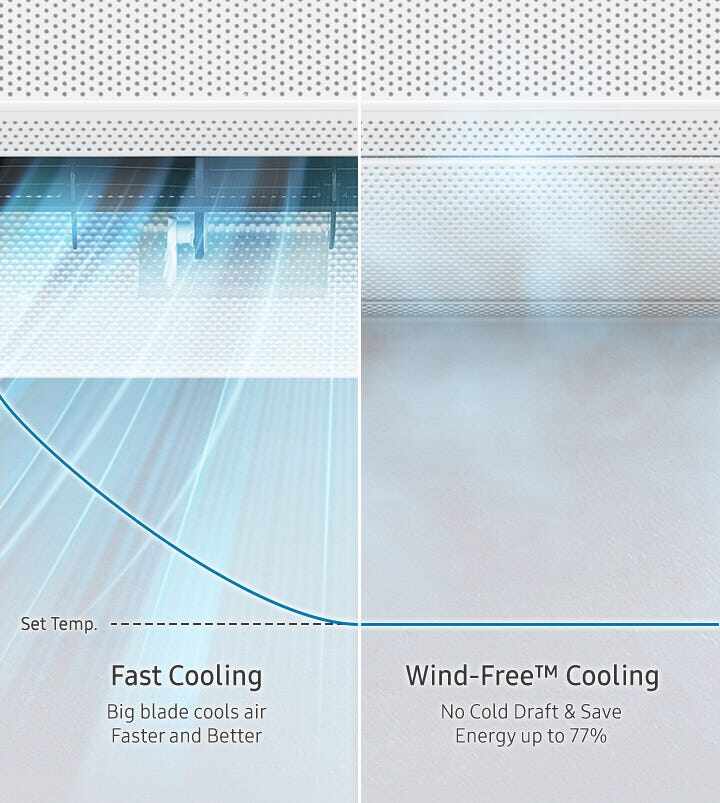

Save money every day with highly energy-efficient WindFree™ Cooling. When operating in WindFree™ mode, the outdoor unit consumes minimal power – using up to 77% less electricity compared to the Fast Cooling mode*. So you can stay comfortably cool without worrying about your electricity bills.

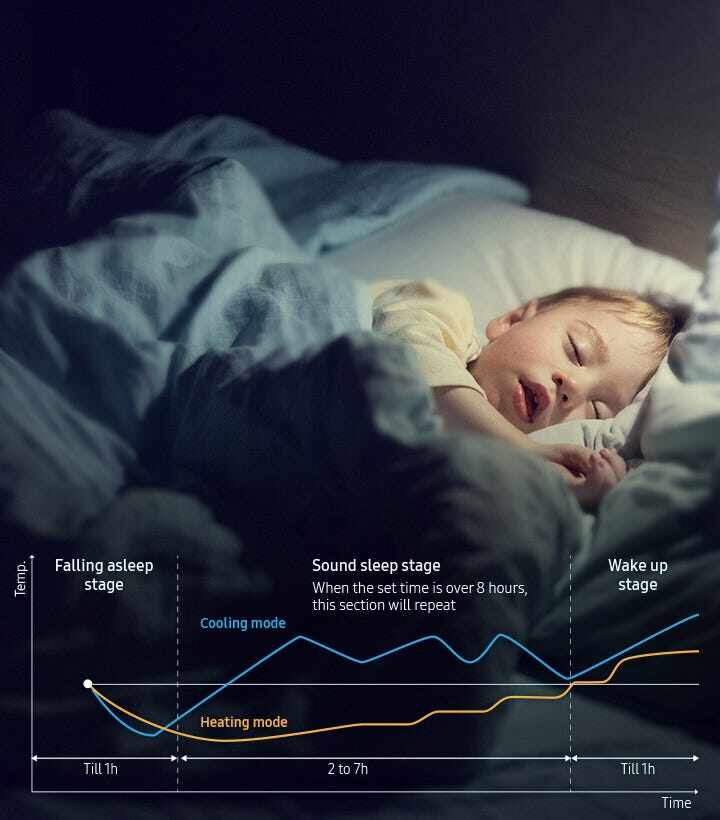

Sleep much better throughout the night

The WindFree™ Good Sleep mode creates the ideal climate for sleeping – without an unpleasant cold air flow. Its temperature control with WindFree™ Cooling helps you fall asleep fast, sleep deeply and comfortably, and wake up feeling fully refreshed.

Simply cleans itself – automatically

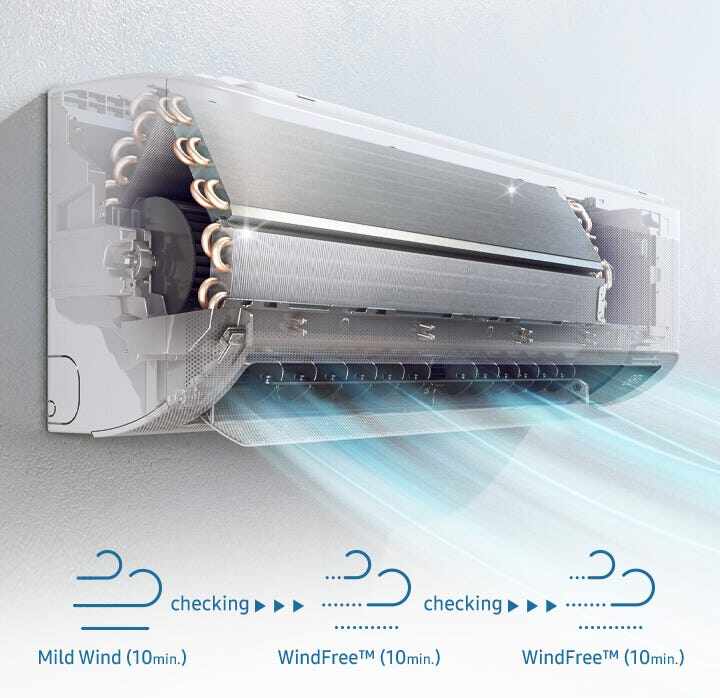

Auto Clean (3 Steps)

Keep the inside of your air conditioner hygienic by doing nothing! After it has been working, the Auto Clean function automatically dries the Heat Exchanger using a 3-step process. It removes moisture by blowing air for between 10 to 30 minutes. So it prevents the build-up of bacteria and odors.

Easy to clean anti-bacterial filter

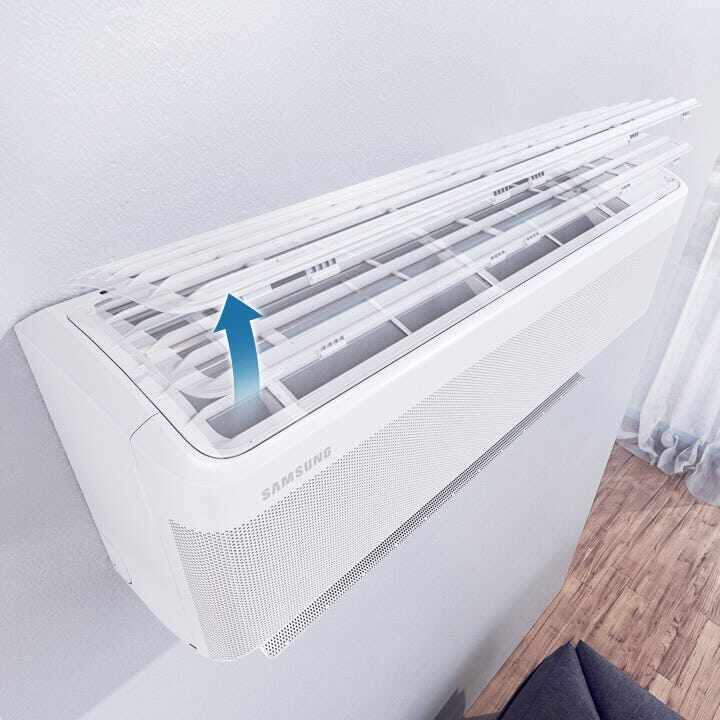

Easy Filter Plus

Keep your air conditioner working efficiently with less effort. The Easy Filter Plus is located outside, on the top, so it can easily be taken out and cleaned. Its dense mesh keeps the Heat Exchanger clean and an anti-bacterial coating helps protect you against dangerous airborne contaminants*.

Specifications

Capacity

Capacity (Cooling, Btu/hr) 10000 Btu/hr

Capacity (Cooling, kW) 2.93 kW

Capacity (Cooling, Min – Max, Btu/hr) 4,500 ~ 12,000 Btu/hr

Capacity (Cooling, Min – Max, kW) 1.32~ 3.52 kW

Energy Efficiency

EER (Cooling, W/W) 3.37 W/W

CSPF 5.00

EER (Cooling, Btu/hW) 11.49 Btu/hW

Energy Efficiency Class for cooling (Grade) 4★

Noise Level

Noise Level (Indoor, High/Low, dBA) 37 / 21 dBA

Noise Level (Outdoor, High/Low, dBA) 49 dBA

Electrical Data

Power Source(Φ/V/Hz) 1 / 220-240 / 50

Power Consumption(Cooling, W) 870 W

Physical specification

Gross Dimension (Indoor, WxHxD) 880*290*375 mm

Gross Dimension (Outdoor, WxHxD) 778*550*331 mm

Net Dimension (Indoor, WxHxD) 820*299*215 mm

Net Dimension (Outdoor, WxHxD) 660*475*242 mm

Gross Weight (Indoor, kg) 10.5 kg

Gross Weight (Outdoor, kg) 20.8 kg

Net Weight (Indoor, kg) 9.2 kg

Net Weight (Outdoor, kg) 19.1 kg

Loading Quantity (20/40/40Hft without Pipe) 120 / 248 / 280

Air Flow

WindFree Cooling Yes

Air Direction Control (Up/Down) Auto

Air Direction Control (Left/Right) Auto

Air Flow Control Step (Cool/Fan) 5/4

Air Purification

PM 1.0 Filter No

Tri Care Filter No

Easy Filter Plus (Anti-Bacteria) Yes

Auto Clean (Self Cleaning) Yes

Convenience

SmartThings Yes

AI Auto Cooling Yes

Motion Detect Sensor No

Freeze Wash No

Filter Cleaning Indicatior Yes

Indoor Temp. Display Yes

Display On/Off Yes

Beep On/Off Yes

24-Hour Timer Yes

Auto Restart Yes

Operating Mode

Auto Mode Yes

Fast Cool Yes

Good Sleep Yes

Eco Mode Yes

Dehumidification Yes

Fan Mode Yes

Quiet Yes

WiFi Embedded Yes
