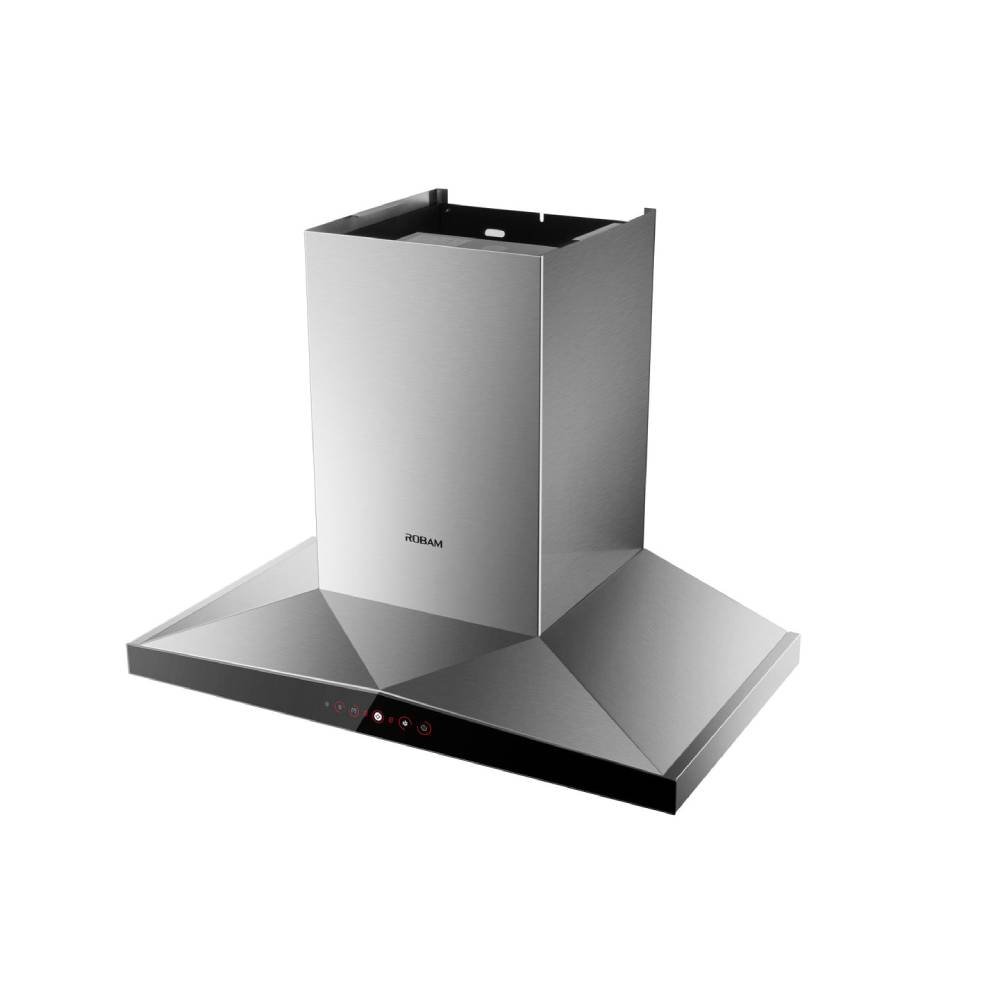

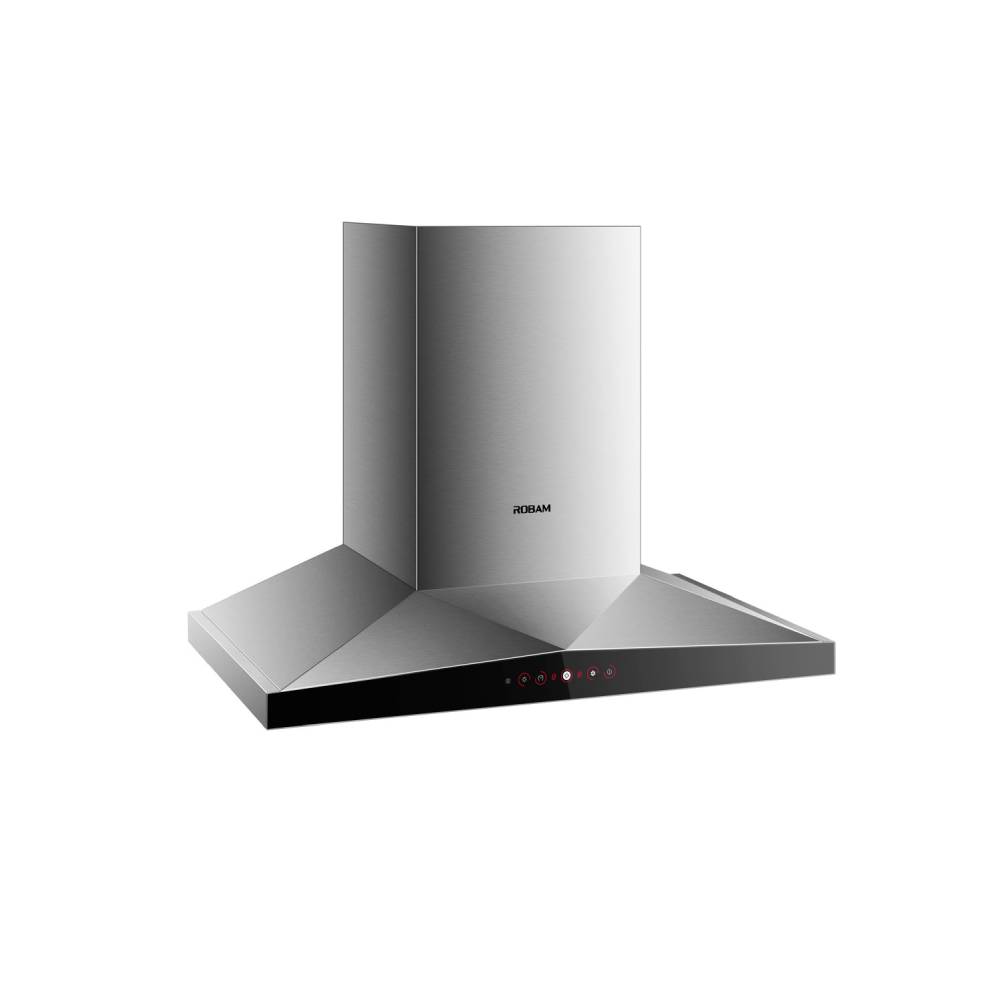

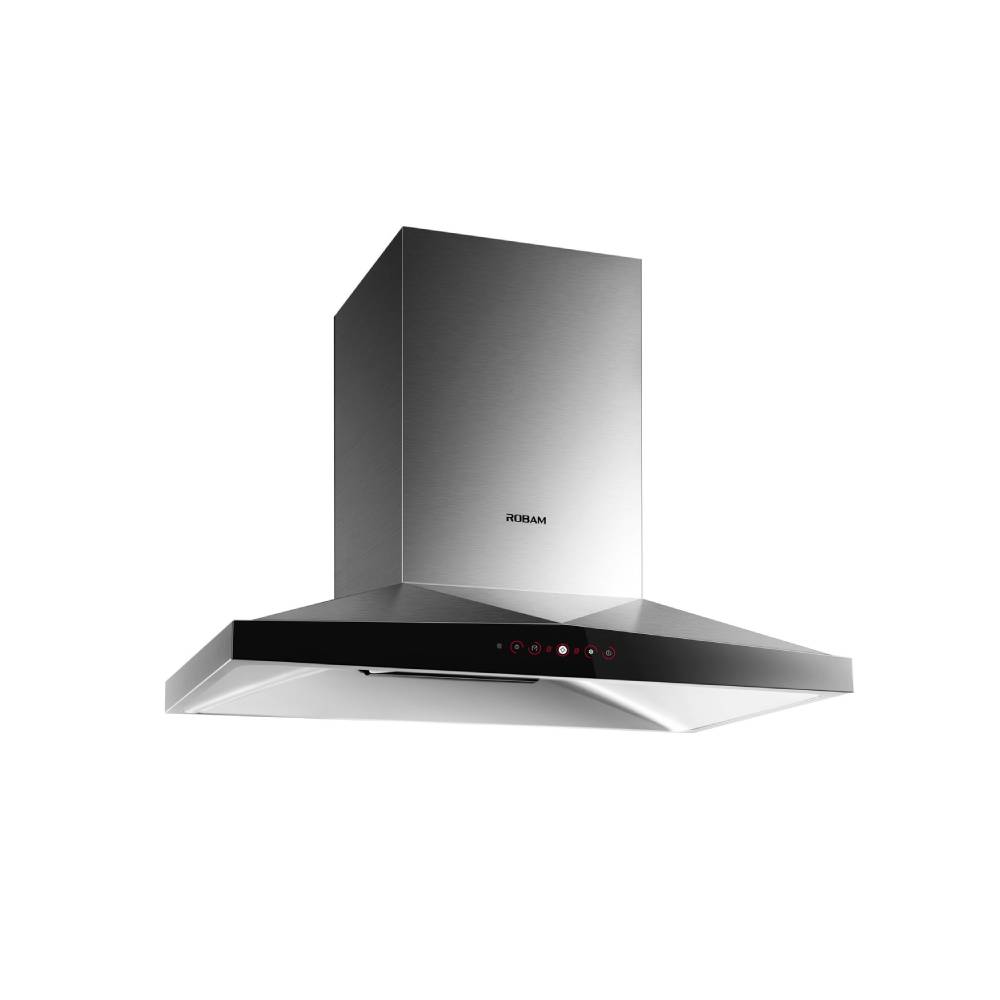

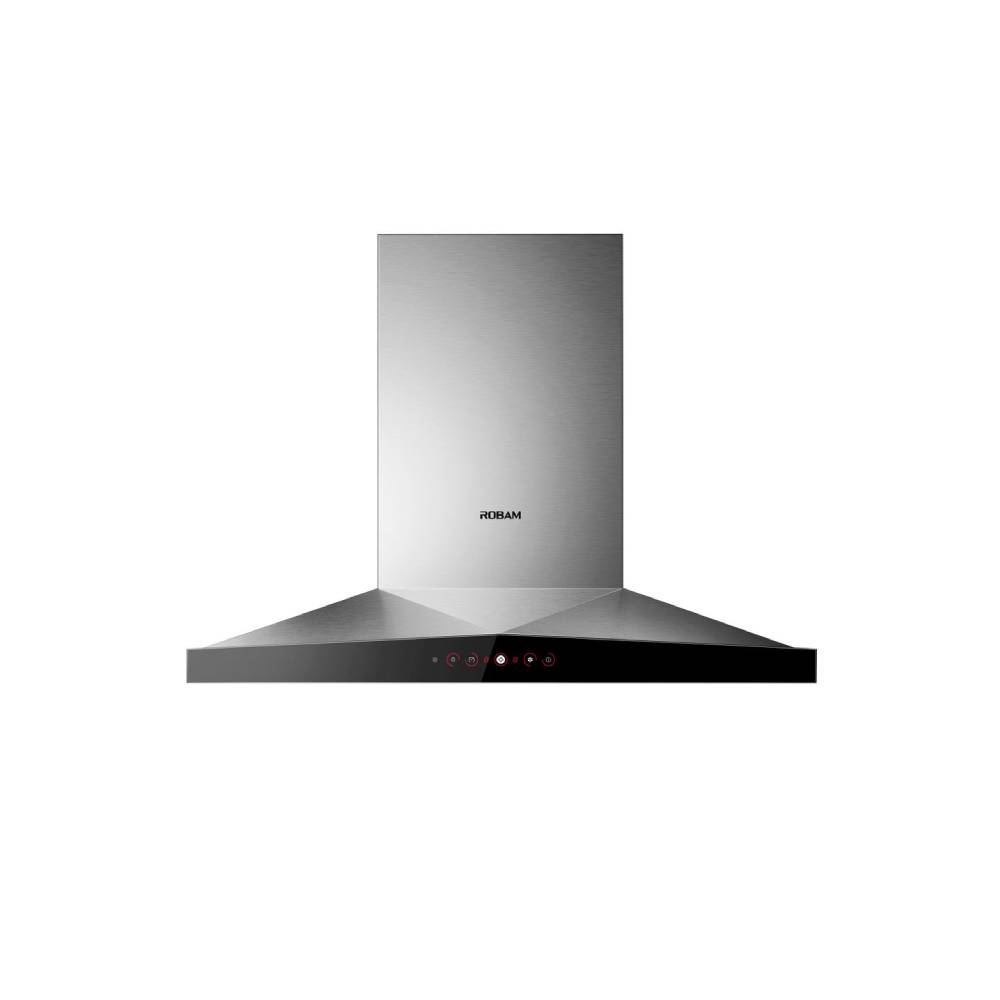

A837 Crossover Series Range Hood

Product Information

Features

• Powerful Motor, Quick Start: Provides comprehensive protection and enhances durability.
• Deep and Wide Hood Cavity: Depth increased from 130mm to 210mm, enlarging the smoke suction zone to form a square negative pressure area. Creates tornado-like suction to efficiently capture rising smoke and prevent escape.

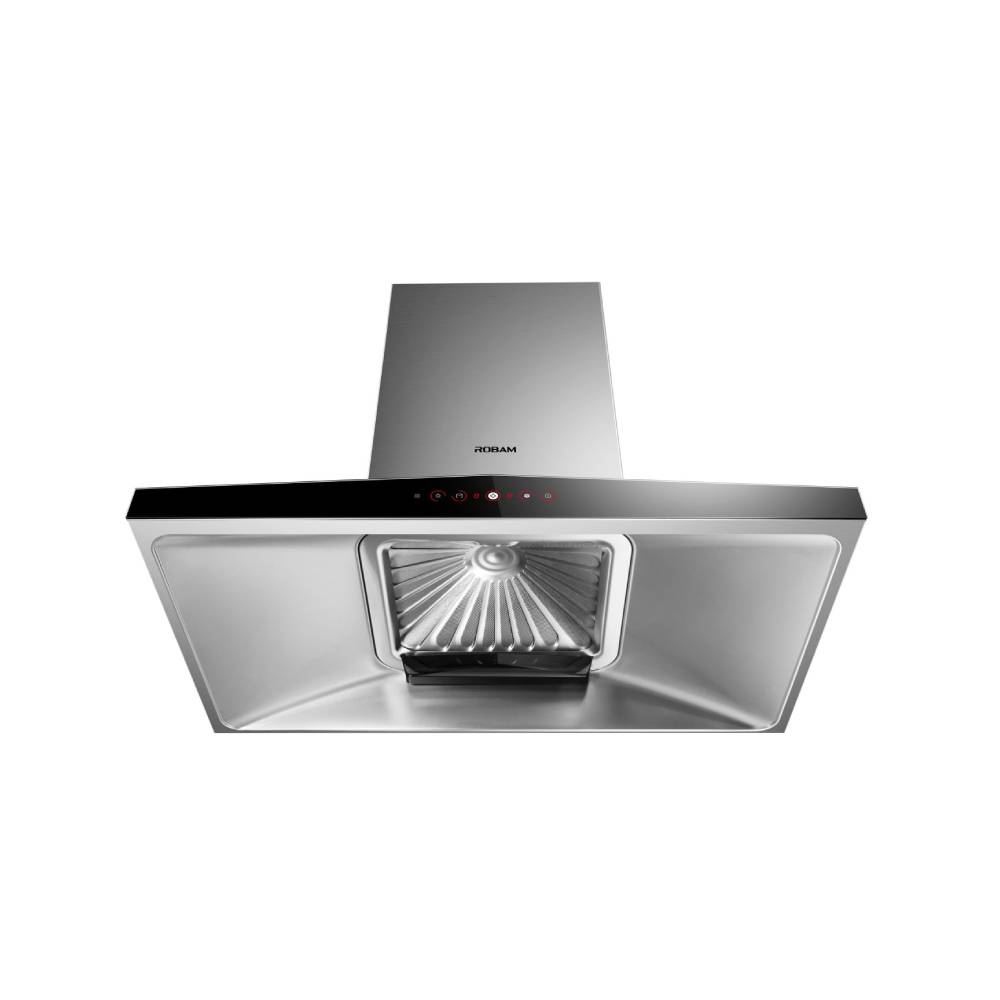

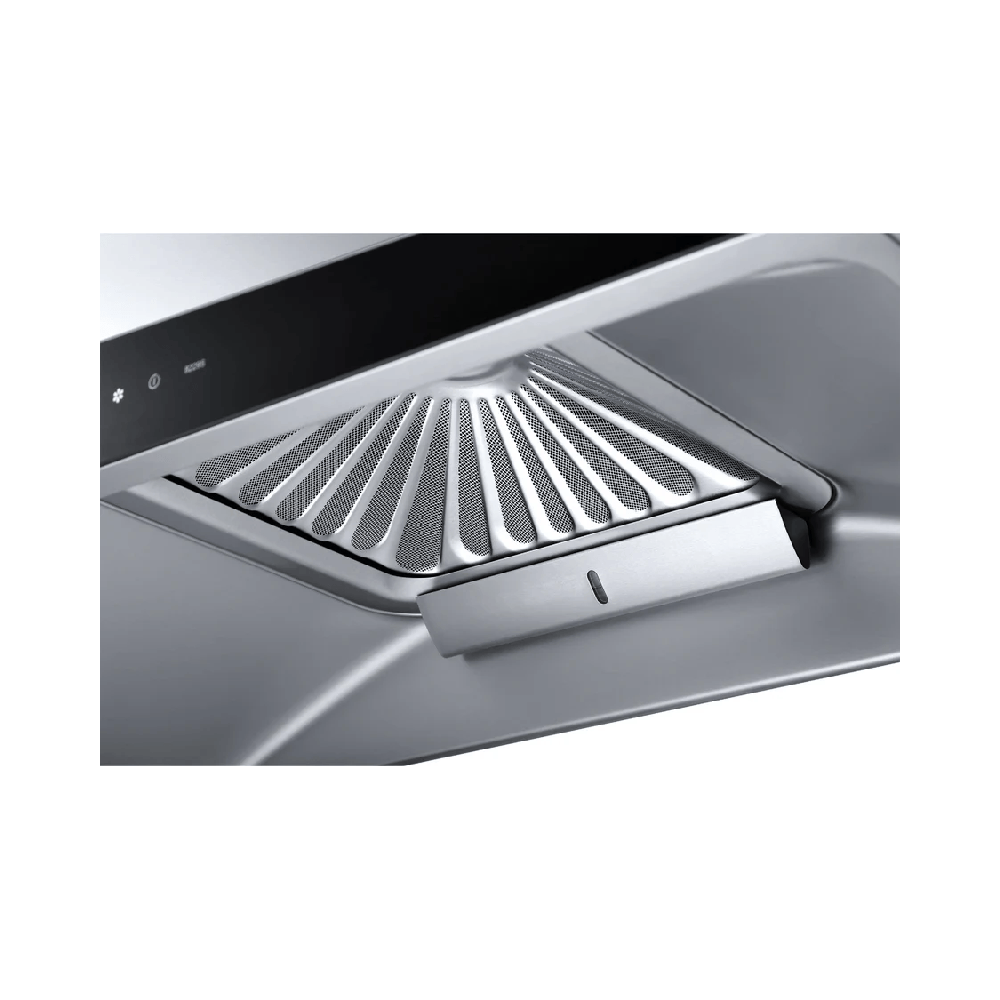

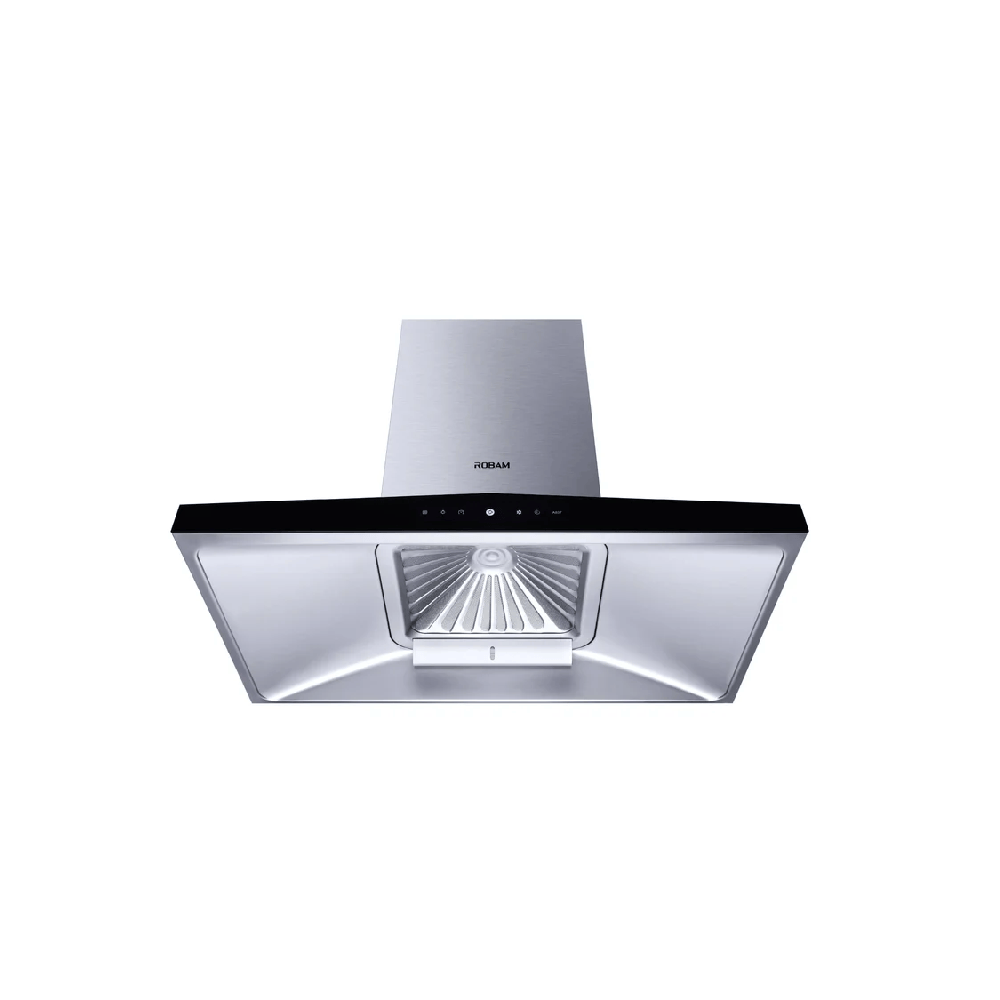

• Integrated Range Hood Filter: Inspired by the Eiffel Tower, this filter design requires no disassembly for cleaning—keeping the hood clean with ease.
• Thoughtful Design Details: Includes one-touch stir-fry mode, delayed shutdown, and filter cleaning reminder to save time and enhance convenience.
• Elegant Design: A modern and minimalist style that adds beauty to your kitchen.

Manuals & Guides

• Manual (English)
• Manual (Chinese)

Specifications

• Size: 36″
• Style: Wall Mount
• Noise Level: 42–53 dB
• Laboratory Airflow (CFM): 650
• Equivalent Airflow (CFM): 1200
• Light Intensity: 1 Level

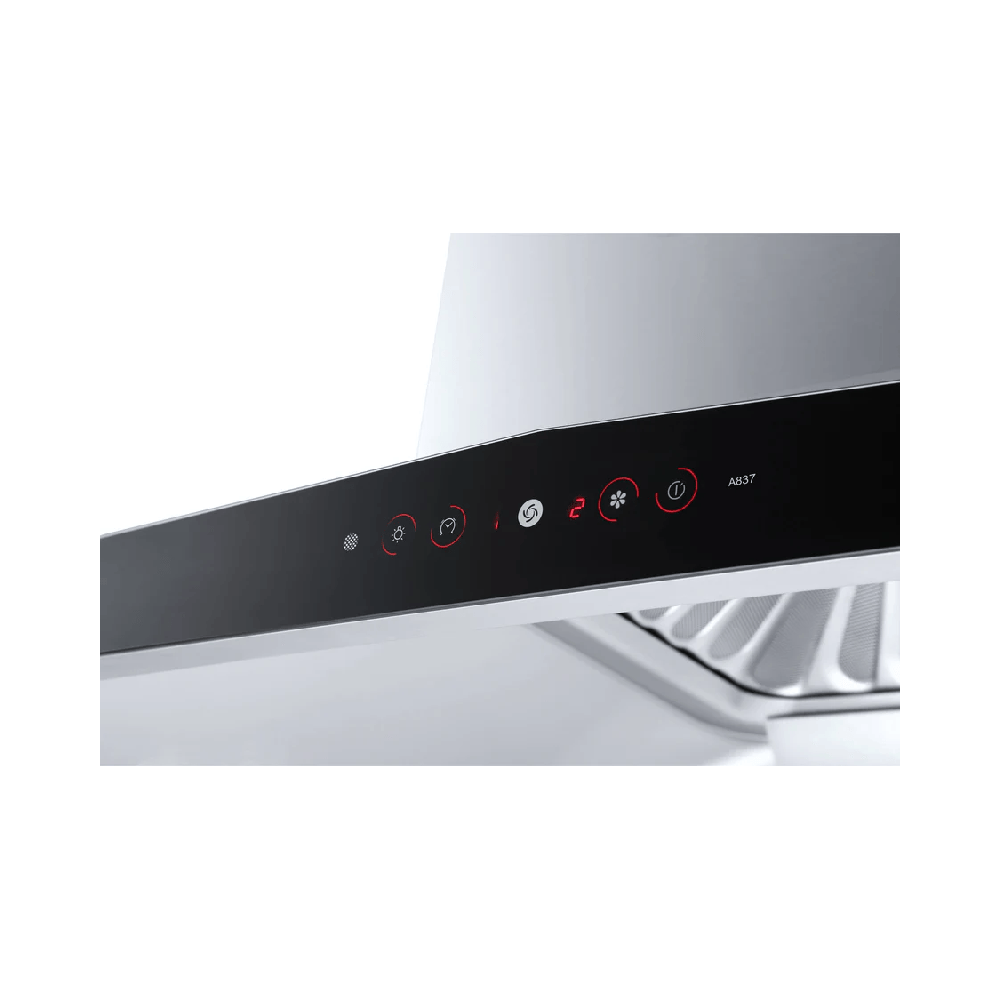

• Control: Touch Panel
• Speed Selections: 6
• Top Venting: 6″ Round
• Rear Venting: N/A
• Convertible: No
• Motor: Single
• Rated Input Power (Hood): 202W
• Rated Input Power (Main Motor): 200W
• Maximum Input Power (Light): 2W
• Connection: Plug-in
• Net Weight: 50.3 lbs
• Dimensions (W x D x H): 35-1/4″ × 20-9/16″ × 26-15/16″
